Description

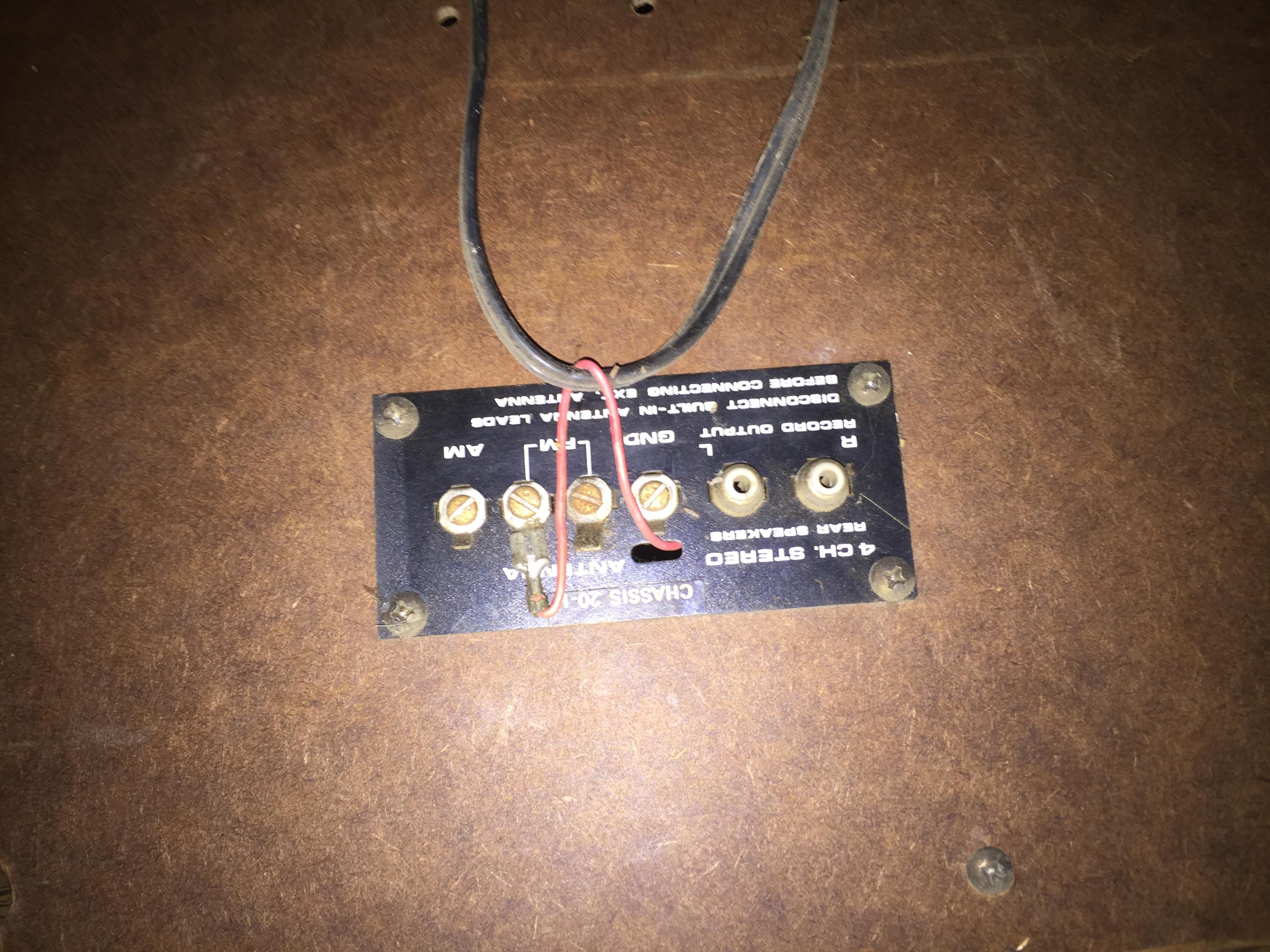

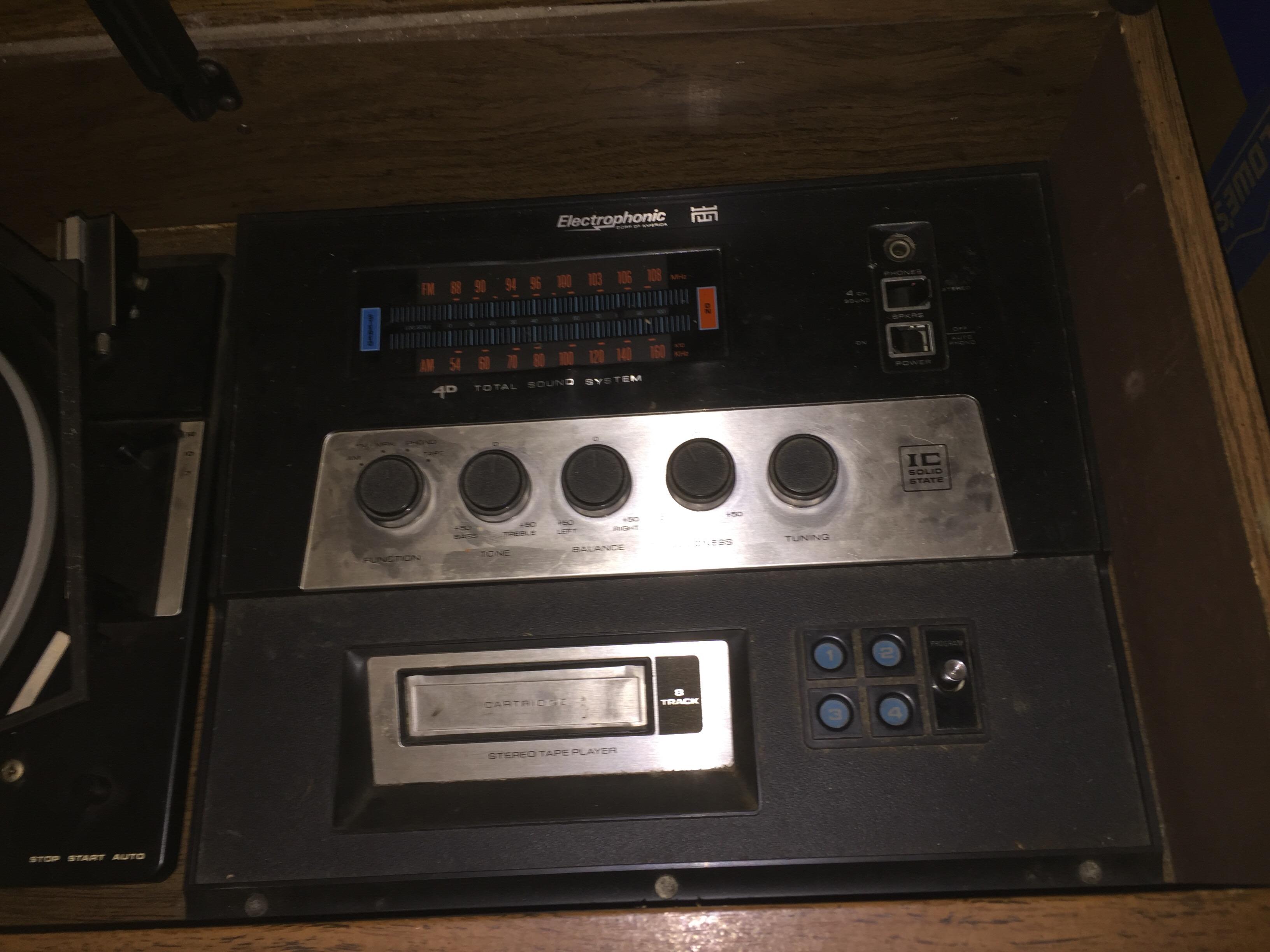

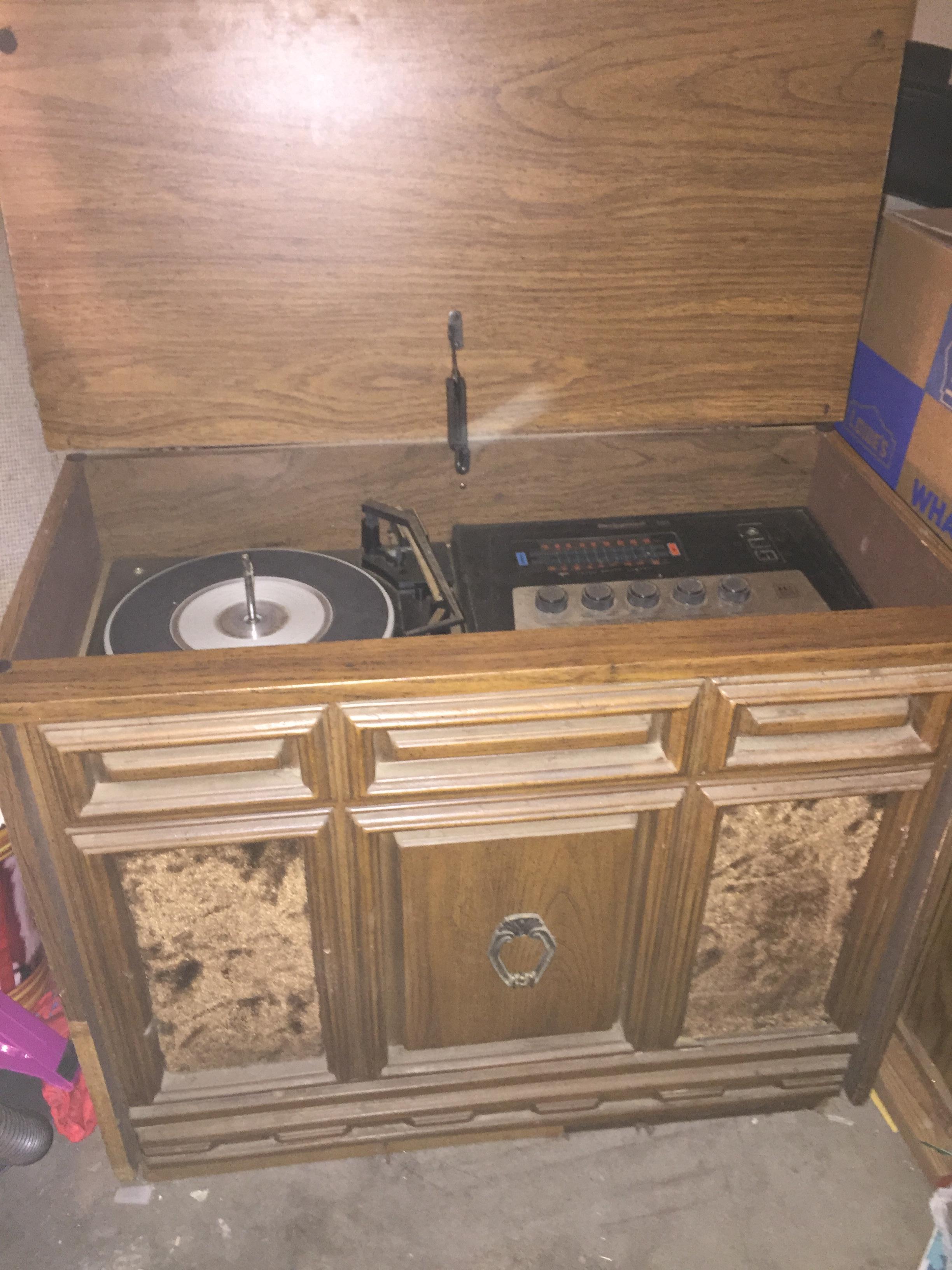

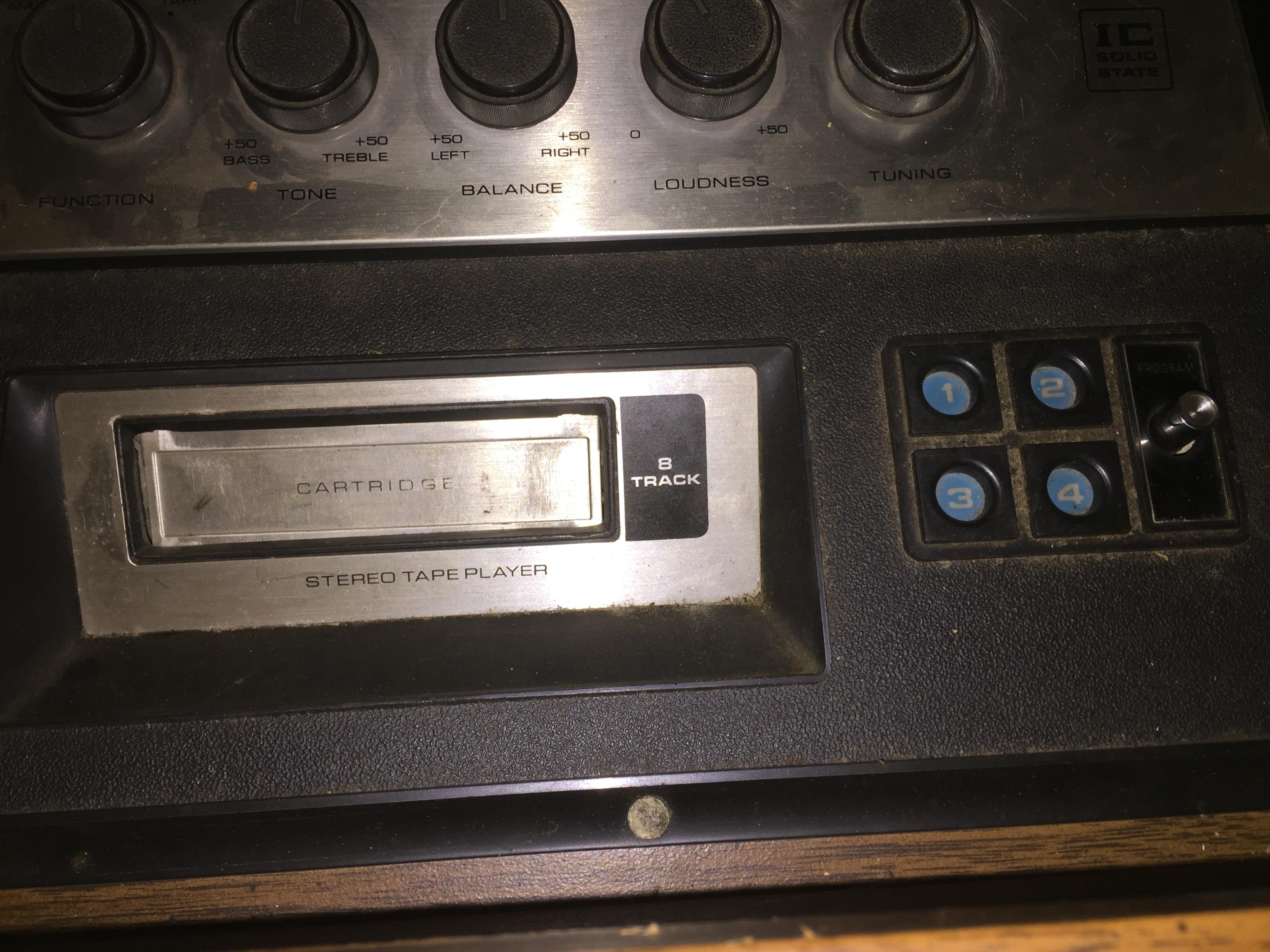

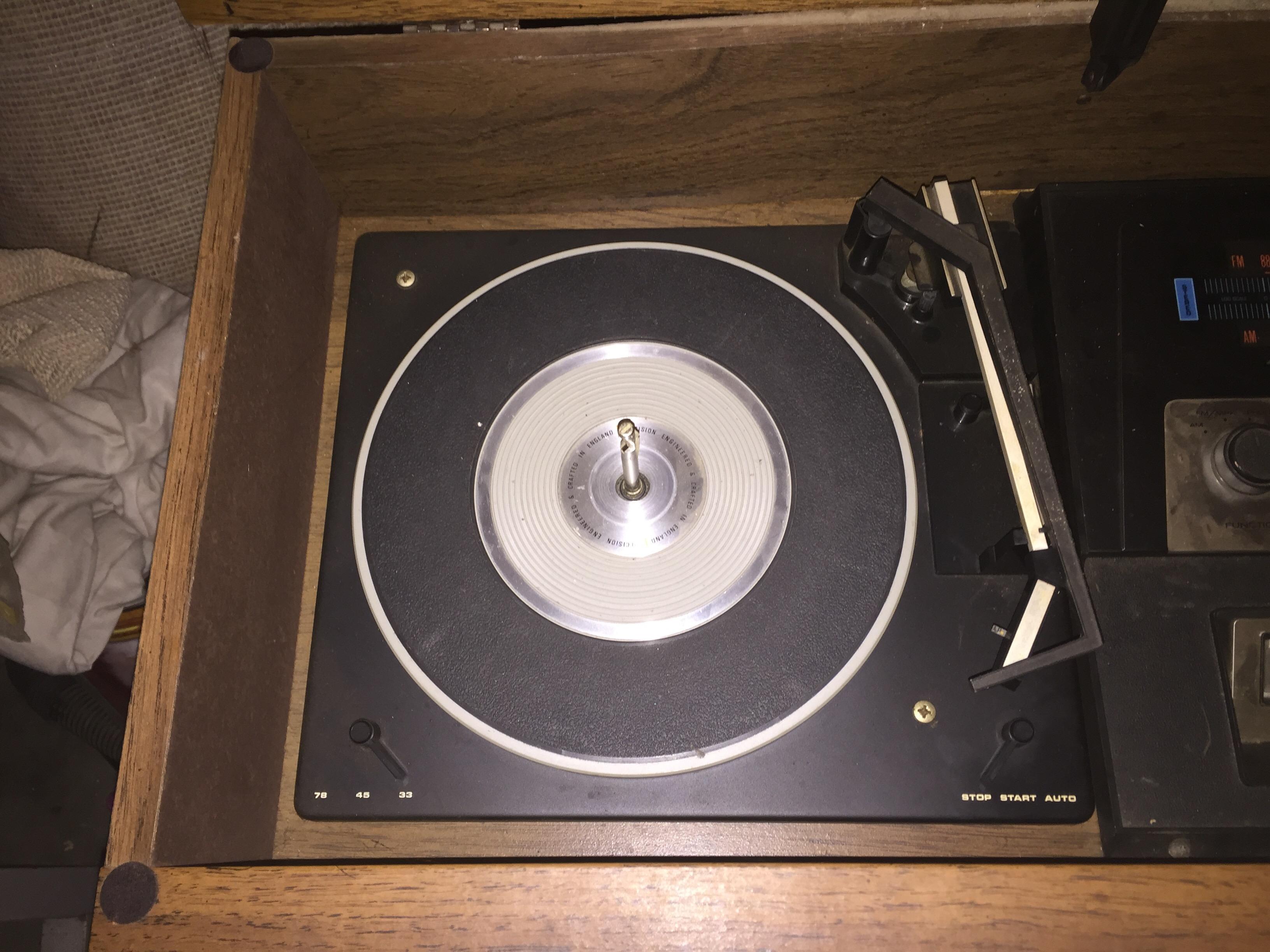

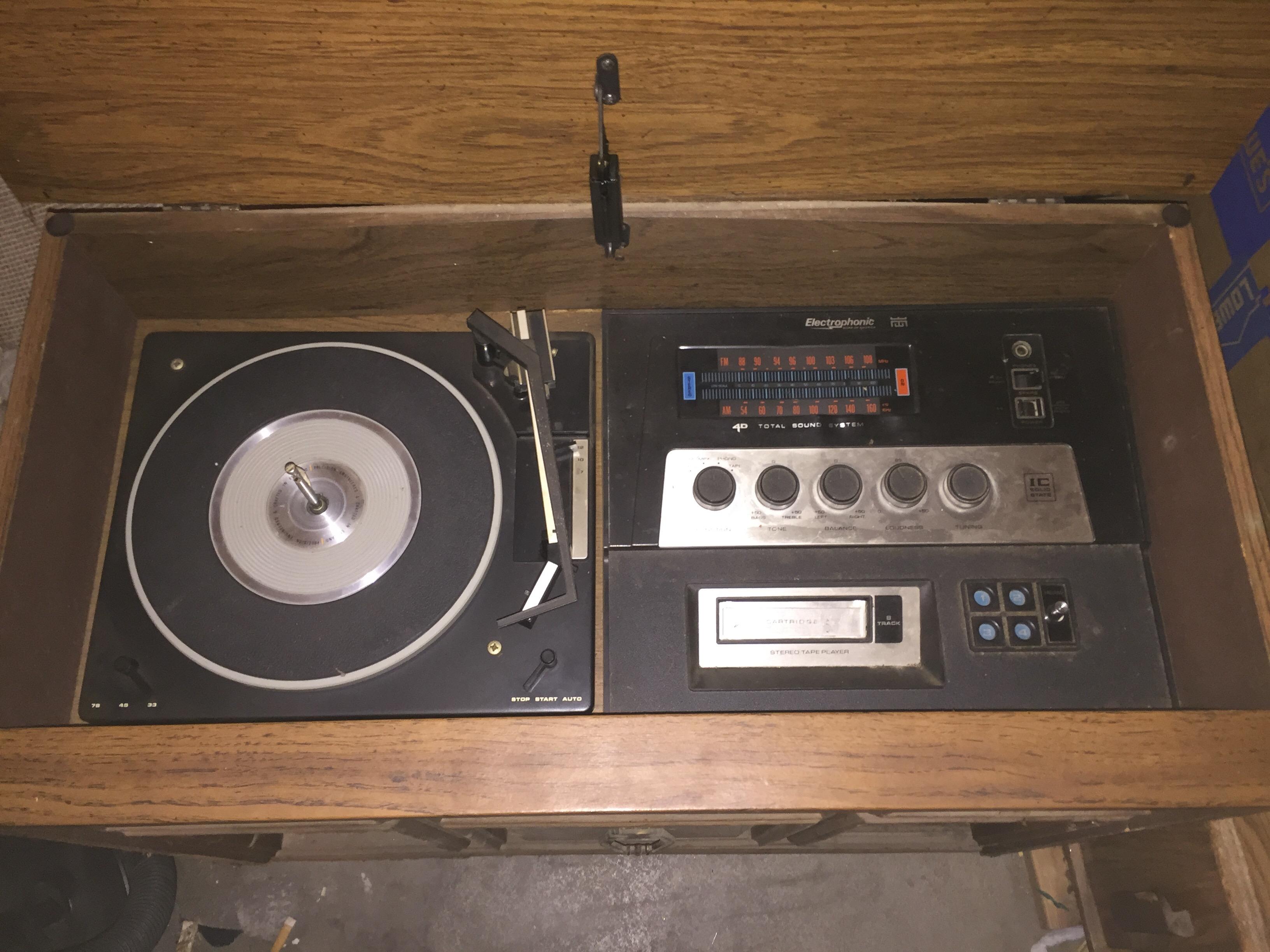

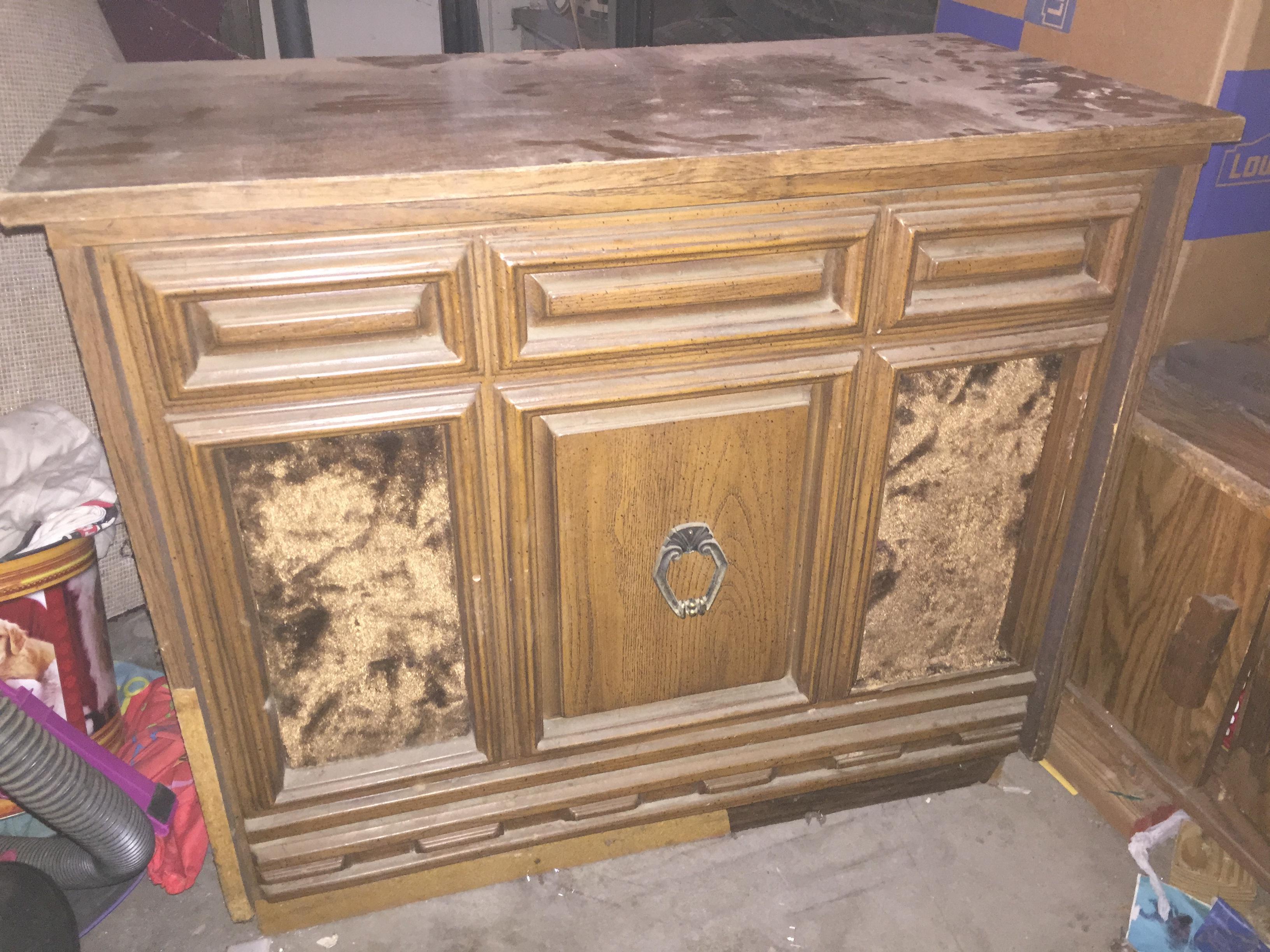

Antique console stereo from Electrophonic. This 4D Total Sound System features an AM/FM radio, 8 track and record player, and has an auxiliary port to plug in a 1/4-inch phone plug. IC sound state. Function, tone, balance, loudness and tuning knobs. Bottom left corner (left side bottom and bottom left side) is peeling but that is the only thing wrong on the entire system. Back label info:
- Service Information: 10476
- Serial Number: C030886
- Catalog Number: TC32-310E
- Tape: 27H
- Changer: A1100
- Chassis: 20H
- FCC Data Model Number: TC3210E
120 Volts 60 Hz .8 Amp
Re: Antique Electrophonic Console Stereo
Please can anyone help me find the wiring schematics for this model?
